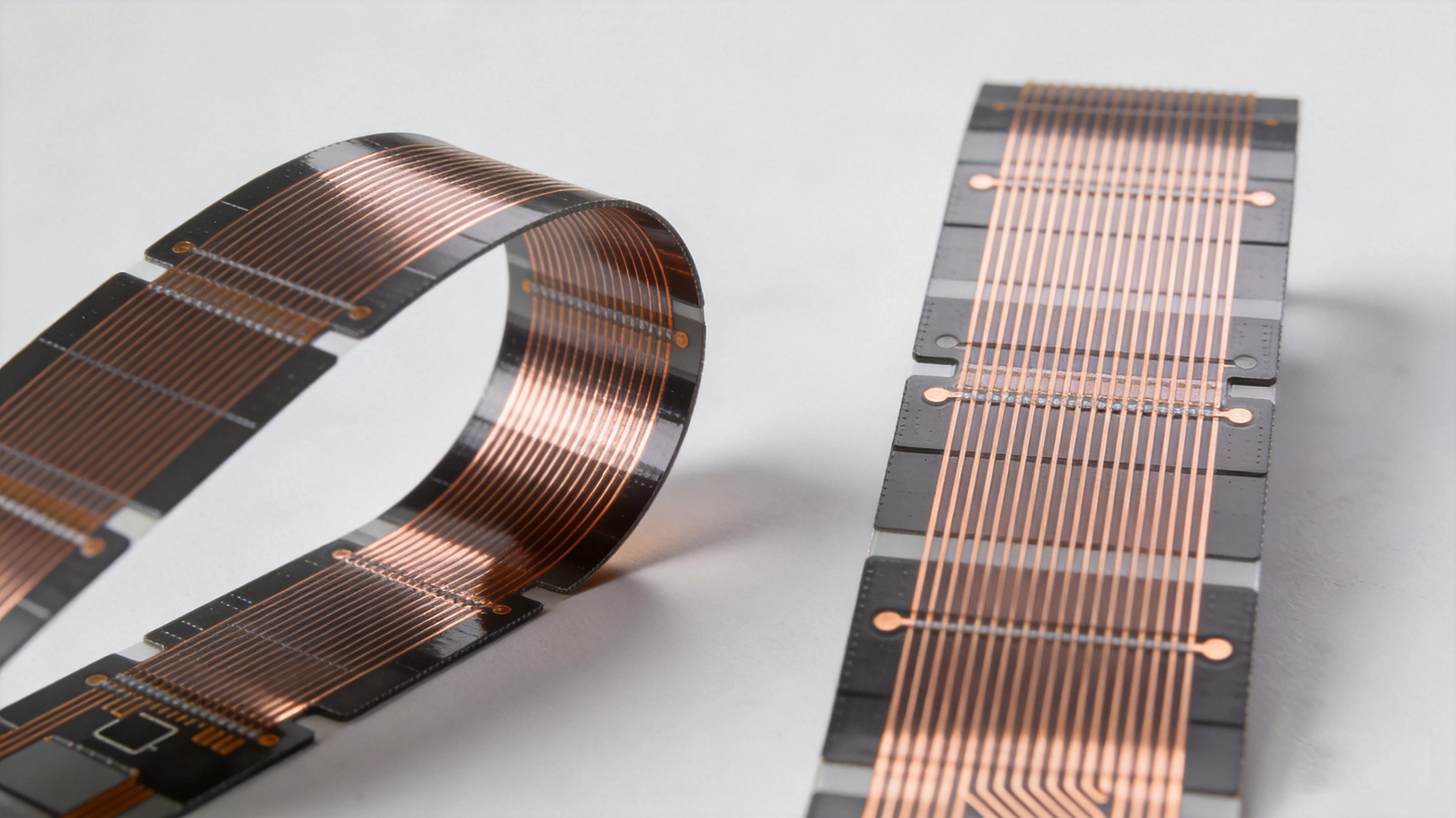

Dynamic vs. Static Flex: Which FPC Type Fits Your Project?

When engineers first encounter flexible printed circuits, the question isn't whether to use flex—it's which type of flex fits their design. Dynamic flex and static flex represent two fundamentally different approaches to incorporating flexibility into electronic assemblies, and choosing between them can significantly impact your product's performance, reliability, and cost structure.

I've spent years working with both technologies across consumer electronics, automotive, and medical device applications. The distinction matters more than many design guides suggest. A poor choice doesn't just affect manufacturing—it shapes the entire lifecycle of your product.

Understanding the Core Difference

Static flex refers to flexible circuits designed to remain in a fixed position after installation. These circuits bend once during assembly or during initial installation, then stay that way for the product's lifetime. Think of the flex cable connecting a display to a main board in a smartphone—the cable folds into place during manufacturing and never moves again.

Dynamic flex, conversely, targets applications where the circuit must bend repeatedly during normal operation. These circuits are engineered to survive thousands, sometimes millions, of flex cycles. Consider the hinge area in a foldable smartphone or the connection points in wearable fitness trackers that flex every time you move.

The engineering implications are substantial. A static flex circuit prioritizes optimal routing and space efficiency. A dynamic flex circuit must prioritize fatigue resistance, material selection, and stress distribution across every flex cycle.

Material Considerations That Drive Performance

The materials chosen for dynamic and static flex circuits differ in ways that directly affect durability and cost.

Static flex circuits typically use polyimide (PI) as the base material, with copper traces laminated between layers. The copper is usually annealed to reduce internal stresses that could cause cracking during the initial bend. Standard adhesive systems work well since there's no ongoing stress to degrade the bond lines over time.

Dynamic flex requires more careful material selection. The copper must be specially treated—either reverse-annealed for maximum ductility or electrodeposited with specific grain structures that resist fatigue initiation. Dynamic circuits often use cap layers with superior elongation properties, and the adhesive systems must maintain integrity across far more thermal and mechanical cycles.

In practice, I've seen static flex circuits reliably operate for over a decade in applications like automotive dashboard displays. The same base materials in a dynamic application might fail within months if the design doesn't account for cumulative fatigue damage.

Design Rules That Separate the Two Technologies

Static flex follows relatively straightforward design guidelines. Minimum bend radius typically ranges from 3x to 10x the total stackup thickness, depending on layer count and copper distribution. Via placement can be more liberal since there's no cyclic loading to concentrate stresses around plated through-holes.

Dynamic flex demands significantly more conservative design rules. Minimum bend radius increases to 10x to 20x the stackup thickness, sometimes more for high-cycle applications. Traces perpendicular to the bend axis must maintain specific width-to-spacing ratios to distribute strain uniformly. Via patterns require careful analysis—covered vias, filled vias, or strategic via placement becomes essential rather than optional.

The trace geometry itself changes. Dynamic circuits often employ rounded trace corners rather than sharp 90-degree angles, graduated trace widths that taper toward high-stress zones, and carefully calculated copper coverage ratios that balance flexibility against routing density.

Durability Metrics That Define Application Fit

Static flex doesn't typically specify cycle寿命 because the circuit isn't designed for repeated bending. The relevant metric is simply that it survives the assembly process without damage.

Dynamic flex circuits are specified by their cycle life. Industry standards and manufacturer testing typically document performance across:

• 90-degree bend cycles at rated bend radius
• Temperature ranges during dynamic operation
• Minimum acceptable conductivity after cycling
• Visual inspection criteria for coverlayer integrity

Common dynamic flex specifications range from 10,000 cycles for moderate-use applications up to 1 million or more for high-reliability requirements. A foldable smartphone hinge might require 200,000 cycles at 180-degree fold radius, while a wearable device might only need 50,000 cycles at gentler bending angles.

Cost Implications Across the Product Lifecycle

Static flex circuits generally cost 20% to 50% more than equivalent rigid boards due to material and processing differences. However, the cost premium stops there—there's no ongoing engineering for durability, and the Manufacturing Process is well-established with mature yield rates.

Dynamic flex circuits carry steeper premiums. The specialized materials, enhanced testing requirements, and tighter process controls typically add 50% to 100% or more compared to static flex pricing. But the real cost difference emerges when you factor in field failures. A dynamic circuit that fails prematurely due to under-specified design or manufacturing variance costs far more than its initial price premium in warranty claims, customer returns, and reputation damage.

The cost analysis should always include failure mode assessment. What's the cost of failure in your application? A smartphone with a cracked display flex circuit might warrant a $50 repair. The same failure in a medical infusion pump or automotive safety system represents a fundamentally different business risk.

Application Scenarios That Guide the Decision

Static flex makes sense when your routing requirements demand flexibility during assembly, but the installed product maintains a fixed configuration. Common applications include:

• Display to board connections in consumer electronics
• Interior connections in compact electronic assemblies
• Replacement for wire harnesses in space-constrained designs
• Connections requiring vibration dampening in fixed orientations
• Cost-sensitive applications where repeated bending never occurs

Dynamic flex becomes necessary when the circuit must flex during normal product operation. Typical applications include:

• Foldable and clamshell device hinges
• Wearable electronics on the body
• Robotic joints and articulated connections
• Automotive seat controls with repetitive motion
• Medical devices requiring repeated sterilization cycling
• Industrial equipment with moving cable management

Making the Choice for Your Specific Project

The decision framework isn't complicated, but it requires honest assessment of your application's requirements.

Ask yourself: Does this circuit bend during normal product use? If the answer is no, choose static flex. If the answer is yes, proceed to the next question.

How many cycles will the circuit experience, and under what conditions? If cycles are limited and conditions are benign, a basic dynamic flex design may suffice. If cycles are numerous, temperatures are extreme, or bend radius is tight, you need specialized dynamic flex engineering.

What does failure cost? The answer to this question should guide your investment in design margins, testing protocols, and quality verification. A medical device that cannot fail in the field justifies premium dynamic flex engineering. A consumer product with acceptable failure rates and low repair costs might accept more aggressive design compromises.

Finally, consider your manufacturing partner's capabilities. Not all flex circuit manufacturers specialize in dynamic applications. Working with a supplier experienced in your specific application type typically provides better outcomes than forcing a general-purpose flex shop to accommodate unusual requirements.

Common Mistakes in Flex Circuit Selection

I've reviewed enough failed designs to identify the recurring patterns that cause problems.

The most common mistake is specifying static flex for applications that experience unexpected dynamic loading. Products that get dropped, handled roughly, or assembled with less care than anticipated can impose unexpected bending forces on supposedly static circuits. Always add design margin for dynamic loading, even when the intended use is static.

Another frequent error involves specifying dynamic flex without adequate cycle requirements. Designers sometimes choose dynamic flex because it seems safer or more robust without clearly defining the actual number of cycles the product must survive. This leads to either over-engineered solutions with unnecessary cost or under-tested designs that fail prematurely.

Material substitution attempts also cause issues. When dynamic flex pricing come in higher than expected, designers sometimes attempt to substitute standard static materials to reduce costs. The resulting circuits might pass initial testing but fail in the field due to fatigue mechanisms that short-term testing cannot detect.

Working with Your Manufacturing Partner

Effective flex circuit design requires early collaboration with your manufacturer. The design rules and material specifications that work on paper don't always translate directly to manufacturable processes.

Share your application requirements completely—cycle count, temperature range, bend radius constraints, and acceptable failure rates. Manufacturers experienced in dynamic applications can often suggest design optimizations that improve reliability without increasing cost, or identify opportunities to reduce cost while maintaining performance requirements.

Request prototype testing that simulates actual field conditions. Accelerated life testing under representative conditions catches design weaknesses before production commitment. The investment in prototype testing is trivial compared to the cost of field failures or product redesigns.

Conclusion

Dynamic and static flex circuits serve different purposes, and the choice between them shapes your product's reliability, cost structure, and manufacturing approach. Static flex provides flexibility for assembly and routing with minimal ongoing stress. Dynamic flex addresses repeated bending with appropriate material selection and design engineering.

The decision framework is straightforward: Does your application require repeated flexing during normal operation? If yes, invest in dynamic flex design and manufacturing. If no, static flex provides a more cost-effective solution without sacrificing reliability.

Both technologies have matured significantly over the past decade. Working with experienced partners and clearly communicating your requirements leads to successful implementations regardless of which path you choose. The failure mode to avoid is unclear requirements that leave your manufacturing partner guessing about your actual needs.

Take the time to define your flex requirements clearly before starting design. The clarity you bring to the specification phase determines the success of your flex circuit implementation.
